The CDM4644 is a quad DC/DC step-downuModule regulator with 4A per output. Outputs canbe multiplexed or paralleled in an array for up to16A capability.Included in the module are the switchingcontrollers, power FETs, inductors, high-precisionupper divider resistance (0.1%) and supportcomponents. A few filters, holding capacitors andresistors are required externally to form a completestep-down quad output DC/DC regulator.The input voltage range of the module is 4V to 14V,and the output voltage can be set in the range of0.6V to 5.5V with an external sampling resistor.The module supports external frequencysynchronization, continuous or discontinuous modeand output voltage tracking sort operation. Themodule has the function of built-in temperaturemonitoring, over-temperature, overvoltage andovercurrent protection.

Quad Output Step-down uModule Regulator with 4A per Output

Wide Input Voltage Range: 4V to 14V, as low as 2.4V with External Bias Supply

Output Voltage Range:0.6V to 5.5V

4A DC, 5A Peak Output Current Each Channel Up to 5.5W Power Dissipation is allowed under Radiator-Free Conditions (TA=60℃, 200LFM) ±1.5% Total Output Voltage Regulation

Current Mode Control Achieves Fast Transient Response

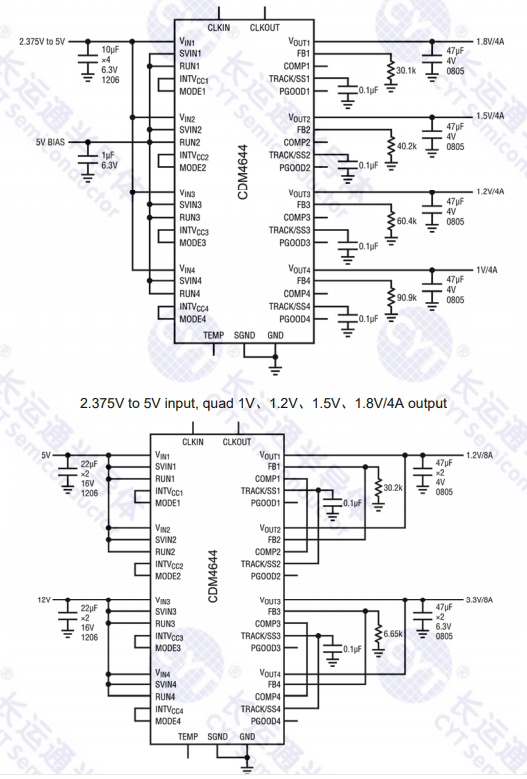

Multiplexed Parallel for Higher Output Current

Output Voltage Tracking

Internal Temperature Sensing Diode Output

External Frequency Synchronization Overvoltage, Overcurrent and Overtemperature Protection

Package Size:

9mm × 15mm × 5.01mm BGA77 Package

Multi-rail Point of Load Regulation FPGAs, DSPs and ASICs Applications
