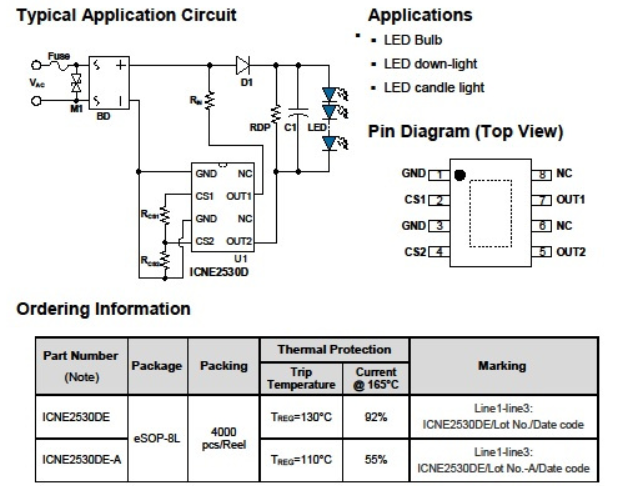

ICNE2530D Phase-Cut Dimmable HV Constant Current LED Driver
ICNE2530D is a high voltage linear constant current LED driver for phase–cut dimmable application, which integrates 500V high voltage MOS. The phase-cut dimmer holding current and the LED driving cur...
ICNE2530D is a high voltage linear constant current LED driver for phase–cut dimmable application, which integrates 500V high voltage MOS. The phase-cut dimmer holding current and the LED driving current can be set through the external resistors between 5mA and 100mA, the current precision can reach ±3%. ICNE2530D built-in negative temperature compensation function, help to improve the source regulation of the linear power supply system. The built-in negative temperature compensation function can effectively prevent damage to the system caused by sudden temperature changes. ICNE2530D system has simple peripherals, flexible application, high reliability, small volume, and low system BOM cost. It is suitable for all kinds of LED lamps.
Phase-cut dimmable constant current
control technology
Programmable output current
13% LED current accuracy
Temperature compensation improves
the source regulation
NO EMI issue
eSOP-8L package available
| 產品型號 | 驅動類型 | 輸入電壓 | 輸出電流 | 封裝方式 | 簡單描述 |
| IML8673NL-TR | AC-DC | 110V/220V | 180mA | DFN2*2mm-6L | 高壓性線 |
| IML8674LL-TR | AC-DC | 110V/220V | 180mA | DFN3*3mm-10L | 高壓性線 |
| IML8676CL-TR | AC-DC | 110V/220V | 180mA | DFN3*3mm-8L | 高壓性線 |
| IML8684BP-ADJ-TR | AC-DC | 110V/220V | 150mA | SOT-89 | 高壓性線 |
| IML8684NL-ADJ-TR | AC-DC | 110V/220V | 150mA | DFN2*2mm-6L | 高壓性線 |
| IML8685AE-TR | Active | 110V/220V | 75mA | TSOT23-3L | 高壓性線 |
| IML8686AK-TR | AC-DC | 110V/220V | 250mA | SOT-223 | 高壓性線 |
| IML8686AP-TR | AC-DC | 110V/220V | 150mA | SOP89-3 | 高壓性線 |
| IML8686APA-TR | AC-DC | 110V/220V | 160mA | SOP89-3 | 高壓性線 |
| IML8686APB-TR | AC-DC | 110V/220V | 110mA | SOP89-3 | 高壓性線 |
| IML8690NL-TR | AC-DC | 110V/220V | 30W | DFN2*2mm-6L | 高壓性線 |
| IML8693NE-TR | AC-DC | 110V/220V | 30W | TSOT23-6L | 高壓性線 |
| IML8691CL-TR | Dimming | 110V/220V | / | DFN3*3mm-8L | PWM調光 |
| IML8692CFA-TR | AC-DC | 110V/220V | 25W | SOP-8L | 高壓性線 可控硅調光 |
| IML3160AK | MOS | 600V | 1.5A | SOT-223 | 功率MOS管 |
| AMC7140 | DC-DC | 5-80V | 700mA | TO-252-5L | 線性降壓 |
| ICL1701 | DC-DC | 5-75V | 1.5A | TO252-5L | 線性降壓 |
| ICL1702 | DC-DC | 5-40V | 700mA | ESop-8/TO252-5L | 線性降壓 |
| ICL9201 | 40V | 50mA | SOT-23 | 去頻閃IC | |
| ICL1101 | AC-DC | 110V/220V | 7/14/21/28mA | 70*70UM2 | 高壓性線 |
| ICL1102 | AC-DC | 110V/220V | 100mA | SOT89/ESOP8/TO252 | 550V高壓性線恒流IC |
| ICL1103 | AC-DC | 110V/220V | 60mA | SOT89/ESOP8/HSOP-7 | 550V高壓性線恒流IC |
| ICL1104 | AC-DC | 110V/220V | 100mA | SOT89/ESOP8/TO252 | 650V高壓性線恒流IC |
| ICL1202 | AC-DC | 110V/220V | 100mA | eSOP-8 | 智能調光線性恒流IC |
| ICL1402/ICL1403 | AC-DC | 110V/220V | 100mA*2 | eSOP-8 | 雙通道高壓性線恒流IC |
| ICNE2521DE/A/B | AC-DC | 110V/220V | 100mA | eSOP-8 | 高壓性線 |
| ICNE2521DS/A/B | AC-DC | 110V/220V | 100mA | SOT-89-3 | 高壓性線 |
| ICNE2521DT/A/B | AC-DC | 110V/220V | 100mA | TO-252-3L | 高壓性線 |
| ICNE2530DE | AC-DC | 110V/220V | 100mA*2 | eSOP-8 | 雙通道高壓性線恒流IC |
| ICNE2531 | AC-DC | 110V/220V | 100mA | eSOP-8 | 可控硅調光高壓性線 |
| ICL3101 | AC-DC | 85V-265V | 150-220mA | SOT-33-4L/SOP-7L | 非隔離降壓恒流去VCC |
| ICL3102 | AC-DC | 85V-265V | 220-600mA | SOP-7L/DIP-7L | 非隔離降壓恒流去VCC |
| ICL9101AP | 開關調光 | 85V-265V | 300mA | SOP-8L | 帶記憶雙通道調色溫 |
| ICL9104AP | 開關調光 | 85V-265V | 280mA | SOP-8L | 帶記憶雙通道調色溫 |
