ASC200N1200,1200V國產SiC碳化硅MOS管 車規級 200A 100A 60A 30A ASC200N1200MT4
產品描述：
碳化硅(SiC) MOSFET使用一種全新技術，與硅相比，該技術提供了卓越的開關性能和更高的可靠性。此外，低導通電阻和緊湊的芯片尺寸確保了低電容和柵極電荷。因此，系統優勢包括最高效率、更快的工作頻率、更高的功率密度、更低的EMI和更小的系統尺寸。

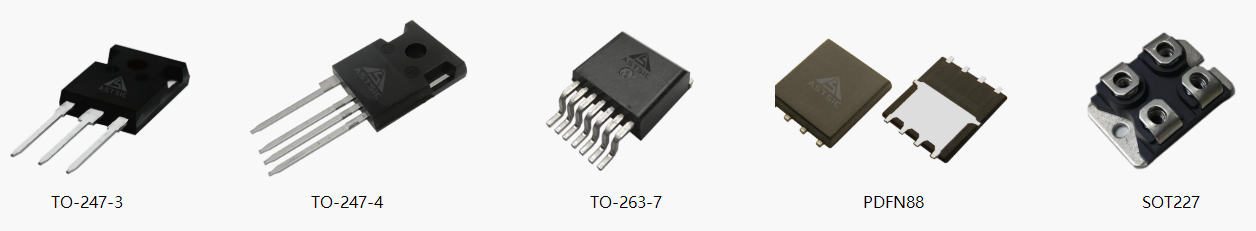

Model Name | R(on) | Current | Vgs | Package | Status |
| ASC200N1200MT4 | 8mohm | 200A | 18V | TO-247-4 | Product |
| ASC100N1200MDS | 16mohm | 100A | 18V | SOT227 | Product |
| ASC100N1200MDSK | 16mohm | 100A | 18V | SOT227 | Product |
| ASC100N1200MT3 | 16mohm | 100A | 18V | TO-247-3 | Product |
| ASC100N1200MT4 | 16mohm | 100A | 18V | TO-247-4 | Product |
| ASR16N1200MD02 | 16mohm | 100A | 18V | TOLL | Product |
| ASC100N1200MT4PB | 20mohm | 100A | 15V | TO-247-4 | Product |
| ASR20N1200MD02PB | 20mohm | 100A | 15V | TOLL | Product |
| ASC75N1200MT4PB | 30mohm | 75A | 15V | TO-247-4 | Development |
| ASC60N1200MT4i | 45mohm | 60A | 18V | TO-247-4 | Product |
| ASC60N1200MT3 | 45mohm | 60A | 18V | TO-247-3 | Product |
| ASC60N1200MT4 | 45mohm | 60A | 18V | TO-247-4 | Product |
| ASC60N1200MT4PB | 45mohm | 60A | 15V | TO-247-4 | Product |
| ASC60N1200MT7 | 45mohm | 60A | 18V | TO-263-7 | Product |
| ASR45N1200MD02 | 45mohm | 60A | 18V | TOLL | Product |
| ASR50N1200MD88 | 50mohm | 60A | 18V | PDFN8*8 | Product |
| ASC30N1200MT3 | 80mohm | 30A | 18V | TO-247-3 | Product |
| ASC30N1200MT4 | 80mohm | 30A | 18V | TO-247-4 | Product |
| ASC30N1200MT4PB | 80mohm | 30A | 15V | TO-247-4 | Product |
| ASC30N1200MT7 | 80mohm | 30A | 18V | TO-263-7 | Product |
| ASR80N1200MD02 | 80mohm | 30A | 18V | TOLL | Product |
| ASR80N1200MD88 | 80mohm | 30A | 18V | PDFN8*8 | Product |
| ASC20N1200MT3PB | 160mohm | 20A | 15V | TO-247-3 | Product |
| ASC20N1200MT4PB | 160mohm | 20A | 15V | TO-247-4 | Product |
| ASC20N1200MT7PB | 160mohm | 20A | 15V | TO-263-7 | Product |
| ASR160N1200MD02PB | 160mohm | 20A | 15V | TOLL | Product |
| ASR160N1200MD88PB | 160mohm | 20A | 15V | PDFN8*8 | Product |
